A127F A12 [Exynos 850] ISP PIN OUT FRP RESET and DUMP FILE READ

Abdullah Ali

Moderator
Moderator
The Geeks
Mar 30, 2020
142
174
Pakistan Gujrat
Language
English
Sonork ID
0
WORLD 1'ST EXCLUSIVE A127F A12 [Exynos 850] ISP PINOUT FRP RESET and DUMP FILE READ


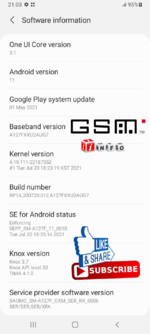

A127F A12 [Exynos 850] ISP PINOUT FRP RESET and DUMP FILE READ



Code:

EasyJtag Suite Classic ver.: 3.7.0.20 / wxWidgets 3.1.3-W-U started.
OS ver.: Windows 7 (build 7601, Service Pack 1). Admin rights OK
Autorun Agent ver:1.0.0.0
Crash Reporting ver:1.4.0.3
EasyJTAG SPI Plugin ver:1.1.1.13
Android ADB API ver:2.0.0.0
FTDI API ver:3.2.4.0
LibUSB API ver:1.2.6.0
Visual C++ Runtime ver:10.0.30319.1
Setting box Pinout ...

Box Drivers version: 3.0.0.0
Z3X Card Serial : AA27-78BA , ver: 22
Z3X Card Activation [JTAGPLUS] : ACTIVATED
Z3X Card Activation [LG] : NOT ACTIVATED
Z3X Card Activation [SAMS] : NOT ACTIVATED
Z3X Card Activation [JTAG] : ACTIVATED


For more information press F1 to open local help or visit our wiki

Found 1 serial devices
COM4 USB\VID_1781&PID_AAAC&REV_0100&MI_00 Easy Jtag Plus Control Port (COM4)
Selected pinout: GEN2 ISP Pinout
Change EasyJTAG Pinout OK
Z3X EasyJtag Software ver. 3.7.0.20
Loading eMMC GEN2 Firmware... IO: 2800 mV
Box S/N: F6F272D292237F2E, ,FW Ver.: 02.53
CMD Pullup Level:2089 mV
CMD Active Level:2257 mV
Box IO Level:2800 mV
CLK Rate:6000 kHz
Bus Width:1bit,SDR
HiPower mode is off!
---------- eMMC Device Information ----------

eMMC CID : 15010044503644414200E1E0D3E3789B
eMMC CSD : D02701320F5903FFF6DBFFEF8E40400D
eMMC Manufacturer ID: 0015 , OEM ID: 0100
eMMC Date: 07/2005 Rev.0x0
eMMC NAME: DP6DAB , S/N: 3789607907
eMMC NAME (HEX): 445036444142
EMMC ROM1 (Main User Data) Capacity: 59640 MB
EMMC ROM2 (Boot Partition 1) Capacity: 4096 kB
EMMC ROM3 (Boot Partition 2) Capacity: 4096 kB
EMMC RPMB (Replay Protected Memory Block) Capacity: 16384 kB
EMMC RPMB is programmed and written 404 times
EMMC Permanent Write Protection: No
EMMC Temporary Write Protection: No
EMMC Password Locked: No
Extended CSD rev 1.8 (MMC 5.1)
Boot configuration [PARTITION_CONFIG: 0x48] Boot from:ROM2 (Boot Partition 1)
Boot bus config [177]: 0x01 , width 4bits , Partition config [179]: 0x48.
H/W reset function [RST_N_FUNCTION]: 0x01
High-capacity WP group size [HC_WP_GRP_SIZE: 0x00004000]
Partitioning Support [PARTITIONING_SUPPORT]: 0x07
Device support partitioning feature
Device can have enhanced tech.
Partitioning Setting [PARTITION_SETTING_COMPLETED]: 0x00
---------------------------------------------
Backup saved: DP6DAB_3789607907_20211024_1937.extcsd
Found valid GPT with protective MBR; using GPT.
Real (Hardware) Disk/Image size: 747C000 sectors 58.2 GiB
Soft (Partitioned) Disk/Image size: 747BFBC sectors 58.2 GiB
Disk identifier (GUID): 52444E41-494F-2044-4D4D-43204449534B
Logical sector size: 0x200 bytes ,First/Last usable sector: 34,122142686
Partition info successfully found
------ Detected 38 partitions ------
P0 (EFS) [0x400000 0x1400000] Size: 20.0MB
P1 (SEC_EFS) [0x1800000 0x1400000] Size: 20.0MB
P2 (RESERVED) [0x2c00000 0x400000] Size: 4.0MB
P3 (CPEFS) [0x3000000 0x800000] Size: 8.0MB
P4 (STEADY) [0x3800000 0x400000] Size: 4.0MB
P5 (PARAM) [0x3c00000 0x800000] Size: 8.0MB
P6 (BOTA) [0x4400000 0x2400000] Size: 36.0MB
P7 (LDFW) [0x6800000 0x800000] Size: 8.0MB
P8 (TZSW) [0x7000000 0x180000] Size: 1.500MB
P9 (TZAR) [0x7180000 0x680000] Size: 6.500MB
P10 (KEYSTORAGE) [0x7800000 0x80000] Size: 512.0KB
P11 (NAD_REFER) [0x7880000 0x100000] Size: 1.0MB
P12 (UP_PARAM) [0x7980000 0x800000] Size: 8.0MB
P13 (MISC) [0x8180000 0x200000] Size: 2.0MB
P14 (UH) [0x8380000 0x200000] Size: 2.0MB
P15 (UHCFG) [0x8580000 0x400000] Size: 4.0MB
P16 (BLCMD) [0x8980000 0x80000] Size: 512.0KB
P17 (BOOT) [0x8a00000 0x2c00000] Size: 44.0MB
P18 (RECOVERY) [0xb600000 0x3500000] Size: 53.0MB
P19 (DTB) [0xeb00000 0x800000] Size: 8.0MB
P20 (DTBO) [0xf300000 0x800000] Size: 8.0MB
P21 (RADIO) [0xfb00000 0x3200000] Size: 50.0MB
P22 (PERSISTENT) [0x12d00000 0x80000] Size: 512.0KB
P23 (VBMETA) [0x12d80000 0x80000] Size: 512.0KB
P24 (VBMETA_SYSTEM) [0x12e00000 0x80000] Size: 512.0KB
P25 (KEYREFUGE) [0x12e80000 0x1000000] Size: 16.0MB
P26 (KEYDATA) [0x13e80000 0x1000000] Size: 16.0MB
P27 (METADATA) [0x14e80000 0x2000000] Size: 32.0MB
P28 (FMP_SELFTEST) [0x16e80000 0x1000] Size: 4.0KB
P29 (RESERVED2) [0x16e81000 0x17f000] Size: 1.496MB
P30 (SUPER) [0x17000000 0x152800000] Size: 5.289GB
P31 (PRISM) [0x169800000 0x37000000] Size: 880.0MB
P32 (OPTICS) [0x1a0800000 0x1800000] Size: 24.0MB
P33 (CACHE) [0x1a2000000 0xc800000] Size: 200.0MB
P34 (OMR) [0x1ae800000 0x3200000] Size: 50.0MB
P35 (CP_DEBUG) [0x1b1a00000 0x500000] Size: 5.0MB
P36 (SPU) [0x1b1f00000 0x3200000] Size: 50.0MB
P37 (USERDATA) [0x1b5100000 0xcda000000] Size: 51.406GB
------------------------------------
------ Android information ------
Detected LINUX(Android) SUPER : 0x0017000000 (5.289GB)
Unable to mount SYSTEM , code : 95
---------------------------------------------
Detected USERDATA USERDATA : 0x01B5100000 (51.406GB)
Unable to mount USERDATA , code : 95
Userdata Superblock contents::
B7002C59 A11716E4 FE6DBBEE D52ACF7A 95F759A6 B531EBE9 DA20F7B3 86EFF17F ·.,Y¡..äþm»îÕ*Ïz•÷Y¦µ1ëéÚ ÷³†ïñ.;
C6069DB2 42D613CF F07ED426 F3C1EDB7 ECA19078 BD4FCF7B 131A7DF5 89BA8314 Æ..²BÖ.Ïð~Ô&óÁí·ì¡.x½OÏ{..}õ‰ºƒ.;
4538E8E4 2C6D41CD 02D4C4C3 E8E0FE77 C6CD668A B96287CD 9CC51EBC 96451FCC E8èä,mAÍ.ÔÄÃèàþwÆÍfŠ¹b‡ÍœÅ.¼–E.Ì;
DFE9B85B 98A0B296 F233AB44 806B33ED 62BDF34C 951D4790 8399EEF0 E54AAF18 ßé¸[.*²–ò3«D.k3íb½óL•.G.ƒ.îðåJ¯.;
453DB693 40F28B97 E4578242 97BFD6D8 1E9D78E0 27BB2BFE AA0954A2 99E156F5 E=¶“@ò‹—äW‚B—¿ÖØ..xà'»+þª T¢.áVõ;
5FB1A5AE DD9CF7DE C1E2A4D8 9C5B983D 781B1689 6C073429 56D5C201 792C646B _±¥®Ýœ÷ÞÁâ¤Øœ[.=x..‰l.4)VÕÂ.y,dk;
90C8F789 AAE3204D 34724668 8F9421C2 55B8DD2D 80E8EBE1 2CF3AE83 3108AA0A .È÷‰ªã M4rFh.”!ÂU¸Ý-.èëá,ó®ƒ1.ª.;
4FFD9952 74910C88 30AB66FB C5D8D53B 8CF537F1 71BAA247 3DF08C11 BD1AFF5B Oý.Rt‘..0«fûÅØÕ;Œõ7ñqº¢G=ðŒ.½.ÿ[;
Done.

Checking security ...
Running:Format FRP Partition...
Z3X EasyJtag Software ver. 3.7.0.20
Loading eMMC GEN2 Firmware... IO: 2800 mV
Box S/N: F6F272D292237F2E, ,FW Ver.: 02.53
CMD Pullup Level:2092 mV
CMD Active Level:2260 mV
Box IO Level:2800 mV
CLK Rate:6000 kHz
Bus Width:1bit,SDR
HiPower mode is off!
---------- eMMC Device Information ----------

eMMC CID : 15010044503644414200E1E0D3E3789B
eMMC CSD : D02701320F5903FFF6DBFFEF8E40400D
eMMC Manufacturer ID: 0015 , OEM ID: 0100
eMMC Date: 07/2005 Rev.0x0
eMMC NAME: DP6DAB , S/N: 3789607907
eMMC NAME (HEX): 445036444142
EMMC ROM1 (Main User Data) Capacity: 59640 MB , 0x747C000 pages , 0xE8F800000 bytes
EMMC ROM2 (Boot Partition 1) Capacity: 4096 kB
EMMC ROM3 (Boot Partition 2) Capacity: 4096 kB
EMMC RPMB (Replay Protected Memory Block) Capacity: 16384 kB
EMMC RPMB is programmed and written 404 times
EMMC Permanent Write Protection: No
EMMC Temporary Write Protection: No
EMMC Password Locked: No
Extended CSD rev 1.8 (MMC 5.1)
Boot configuration [PARTITION_CONFIG: 0x48] Boot from:ROM2 (Boot Partition 1)
Boot bus config [177]: 0x01 , width 4bits , Partition config [179]: 0x48.
H/W reset function [RST_N_FUNCTION]: 0x01
High-capacity WP group size [HC_WP_GRP_SIZE: 0x00004000]
Partitioning Support [PARTITIONING_SUPPORT]: 0x07
Device support partitioning feature
Device can have enhanced tech.
Partitioning Setting [PARTITION_SETTING_COMPLETED]: 0x00
---------------------------------------------
Found valid GPT with protective MBR; using GPT.
Real (Hardware) Disk/Image size: 747C000 sectors 58.2 GiB
Soft (Partitioned) Disk/Image size: 747BFBC sectors 58.2 GiB
Disk identifier (GUID): 52444E41-494F-2044-4D4D-43204449534B
Logical sector size: 0x200 bytes ,First/Last usable sector: 34,122142686
Partition info successfully found
Formatting FRP...
Detected LINUX(Android) PERSISTENT : 0x0012D00000 (512.0KB) formatting...
Done.
Detected LINUX(Android) CACHE : 0x01A2000000 (200.0MB) , formatting...
Done.
Detected LINUX(Android) USERDATA : 0x01B5100000 (51.406GB) , formatting...
Done.
Done.
Done.


























Z3X EasyJtag EMMC File Manager v 1.18 at 29/06/2020 Started..
Box API Version: 3401
FS Driver Version: 29062020
SQLite Version: 3.32.0
FSCK Engine Version: 29062020
ESE DB Version: 29062020
System Util Version: 29062020
System: Windows NT 6.1 (Build 7601, Service Pack 1) / 32 BIT
CPU: Intel(R) Core(TM) i5-3230M CPU @ 2.60GHz
Total RAM: 2.89 GB
Telegram Support: EFM Easy Jtag Emmc Manager Official Russian Group
FRP Apps: Z3X FRP Files

Z3X Card Serial: AA2778BA
EasyJtag Plus Box Found at: COM4
EasyJtag Plus Box Firmware: 2.53.1

Source: EasyJtag Port [EMMC/SD/MMC]
Generation: GPT [QC/SAMS/BCM/INTEL/MTK]
Box Voltage set to: 2800 mV
Scanner Thread Created..

Config: 1011111111101111
Setup HiPower CLK: OFF
Connecting To EasyJtag Plus Box: 2800mV/4MHz/1BIT
EasyJtag Plus Box Found! Result: 0/OK
CMD Pullup Level: 2087 mV
CMD Active Level: 2257 mV
EasyJtag Plus S/N: F6F272D292237F2E
EasyJtag Plus Box FirmWare: 2.53

Box Bus Width = 1 BIT
Box Hardware = EasyJtag 2nd Generation

Search EMMC Chip...

EMMC Chip Found! 0/OK
EMMC CID: 15010044503644414200E1E0D3E3789B
EMMC CSD: D02701320F5903FFF6DBFFEF8E40400D
EMMC VENDOR: SAMSUNG
EMMC NAME: DP6DAB
EMMC SERIAL: E1E0D3E3
EMMC REVISION: 00
EMMC ROM1 Size: 122142720 Block(s)/59640 MB
EMMC ROM2/3 Size: 8192 Block(s)/4096 KB
EMMC RPMB Size: 32768 Block(s)/16384 KB
EMMC RPMB Counter: 404
EMMC RPMB Answer: 0/OK
Switch To ROM1 Part: 0/OK

EMMC REV: 1.8 (for MMC v5.1)
EMMC VER: MMC 5.1
EMMC DEV Life Time: 0x01 -> Normal
EMMC MLC Life Time: 0x01 -> 0% - 10% Life Time Used
EMMC SLC Life Time: 0x01 -> 0% - 10% Life Time Used
EMMC Boot Config: 0x48/0x01/0x01
ExtCSD Automatically Saved..

Scanning Data From EMMC. Please wait..

Scanning GUID Partition Table from ROM1
GUID Partition Table is Found. Max Parts: 128
GPT: GPT [000000000000 - 000000004400] Size: 17.00 KB
GPT: EFS [000000400000 - 000001400000] Size: 20.00 MB
GPT: SEC_EFS [000001800000 - 000001400000] Size: 20.00 MB
GPT: RESERVED [000002C00000 - 000000400000] Size: 4.00 MB
GPT: CPEFS [000003000000 - 000000800000] Size: 8.00 MB
GPT: STEADY [000003800000 - 000000400000] Size: 4.00 MB
GPT: PARAM [000003C00000 - 000000800000] Size: 8.00 MB
GPT: BOTA [000004400000 - 000002400000] Size: 36.00 MB
GPT: LDFW [000006800000 - 000000800000] Size: 8.00 MB
GPT: TZSW [000007000000 - 000000180000] Size: 1.50 MB
GPT: TZAR [000007180000 - 000000680000] Size: 6.50 MB
GPT: KEYSTORAGE [000007800000 - 000000080000] Size: 512.00 KB
GPT: NAD_REFER [000007880000 - 000000100000] Size: 1.00 MB
GPT: UP_PARAM [000007980000 - 000000800000] Size: 8.00 MB
GPT: MISC [000008180000 - 000000200000] Size: 2.00 MB
GPT: UH [000008380000 - 000000200000] Size: 2.00 MB
GPT: UHCFG [000008580000 - 000000400000] Size: 4.00 MB
GPT: BLCMD [000008980000 - 000000080000] Size: 512.00 KB
GPT: BOOT [000008A00000 - 000002C00000] Size: 44.00 MB
GPT: RECOVERY [00000B600000 - 000003500000] Size: 53.00 MB
GPT: DTB [00000EB00000 - 000000800000] Size: 8.00 MB
GPT: DTBO [00000F300000 - 000000800000] Size: 8.00 MB
GPT: RADIO [00000FB00000 - 000003200000] Size: 50.00 MB
GPT: PERSISTENT [000012D00000 - 000000080000] Size: 512.00 KB
GPT: VBMETA [000012D80000 - 000000080000] Size: 512.00 KB
GPT: VBMETA_SYSTEM [000012E00000 - 000000080000] Size: 512.00 KB
GPT: KEYREFUGE [000012E80000 - 000001000000] Size: 16.00 MB
GPT: KEYDATA [000013E80000 - 000001000000] Size: 16.00 MB
GPT: METADATA [000014E80000 - 000002000000] Size: 32.00 MB
GPT: FMP_SELFTEST [000016E80000 - 000000001000] Size: 4.00 KB
GPT: RESERVED2 [000016E81000 - 00000017F000] Size: 1.50 MB
GPT: SUPER [000017000000 - 000152800000] Size: 5.29 GB
GPT: PRISM [000169800000 - 000037000000] Size: 880.00 MB
GPT: OPTICS [0001A0800000 - 000001800000] Size: 24.00 MB
GPT: CACHE [0001A2000000 - 00000C800000] Size: 200.00 MB
GPT: OMR [0001AE800000 - 000003200000] Size: 50.00 MB
GPT: CP_DEBUG [0001B1A00000 - 000000500000] Size: 5.00 MB
GPT: SPU [0001B1F00000 - 000003200000] Size: 50.00 MB
GPT: USERDATA [0001B5100000 - 000CDA000000] Size: 51.41 GB
GPT: BACKUP_GPT [000E8F7FBE00 - 000000004200] Size: 16.50 KB
Reading Table Completed
Scanning GUID Partition Table from ROM2
GPT Signature Not Found. Break..
Scanning GUID Partition Table from ROM3
GPT Signature Not Found. Break..

Partition #5 mount as [/mnt/vendor/efs] -> 20.00 MB
Partition #6 mount as [/efs] -> 20.00 MB
Partition #8 mount as [/mnt/vendor/cpefs] -> 8.00 MB
Partition #32 mount as [/metadata] -> 32.00 MB
Partition #36 mount as [/prism] -> 880.00 MB
Partition #37 mount as [/optics] -> 24.00 MB
Partition #39 mount as [/omr] -> 50.00 MB
Partition #41 mount as [/spu] -> 50.00 MB

EmptyCheck:
EMPTY -> #6 - [RESERVED]
EMPTY -> #9 - [PARAM]
EMPTY -> #10 - [BOTA]
EMPTY -> #17 - [MISC]
EMPTY -> #18 - [UH]
EMPTY -> #19 - [UHCFG]
EMPTY -> #20 - [BLCMD]
EMPTY -> #23 - [DTB]
EMPTY -> #26 - [PERSISTENT]
EMPTY -> #29 - [KEYREFUGE]
EMPTY -> #30 - [KEYDATA]
EMPTY -> #33 - [RESERVED2]
EMPTY -> #37 - [CACHE]
EMPTY -> #41 - [USERDATA]
EmptyCheck: Done
Samsung S/N = RZ8R9108ENJ

Scanner Thread Terminated
Elapsed: 00:00:14:682
Found 43 Partition(s)..
Scan Done. Init Main Engine...

Resetting EasyJtag Box. Wait..
CMD Pullup Level: 2087 mV
CMD Active Level: 2255 mV
Reader Engine Initialized.. 0/OK
Source: EasyJtag Port [EMMC/SD/MMC]
Generation: GPT [QC/SAMS/BCM/INTEL/MTK]
Bus Mode: 1BIT
Operation Done: [Init Engine], Elapsed: 00:00:01:582























Z3X EasyJtag EMMC File Manager v 1.18 at 29/06/2020 Started..
Box API Version: 3401
FS Driver Version: 29062020
SQLite Version: 3.32.0
FSCK Engine Version: 29062020
ESE DB Version: 29062020
System Util Version: 29062020
System: Windows NT 6.1 (Build 7601, Service Pack 1) / 32 BIT
CPU: Intel(R) Core(TM) i5-3230M CPU @ 2.60GHz
Total RAM: 2.89 GB
Telegram Support: EFM Easy Jtag Emmc Manager Official Russian Group
FRP Apps: Z3X FRP Files

Z3X Card Serial: AA2778BA
EasyJtag Plus Box Found at: COM4
EasyJtag Plus Box Firmware: 2.53.1

Source: EasyJtag Port [EMMC/SD/MMC]
Generation: GPT [QC/SAMS/BCM/INTEL/MTK]
Box Voltage set to: 2800 mV
Scanner Thread Created..

Config: 1011111111101111
Setup HiPower CLK: OFF
Connecting To EasyJtag Plus Box: 2800mV/4MHz/1BIT
EasyJtag Plus Box Found! Result: 0/OK
CMD Pullup Level: 2087 mV
CMD Active Level: 2257 mV
EasyJtag Plus S/N: F6F272D292237F2E
EasyJtag Plus Box FirmWare: 2.53

Box Bus Width = 1 BIT
Box Hardware = EasyJtag 2nd Generation

Search EMMC Chip...

EMMC Chip Found! 0/OK
EMMC CID: 15010044503644414200E1E0D3E3789B
EMMC CSD: D02701320F5903FFF6DBFFEF8E40400D
EMMC VENDOR: SAMSUNG
EMMC NAME: DP6DAB
EMMC SERIAL: E1E0D3E3
EMMC REVISION: 00
EMMC ROM1 Size: 122142720 Block(s)/59640 MB
EMMC ROM2/3 Size: 8192 Block(s)/4096 KB
EMMC RPMB Size: 32768 Block(s)/16384 KB
EMMC RPMB Counter: 404
EMMC RPMB Answer: 0/OK
Switch To ROM1 Part: 0/OK

EMMC REV: 1.8 (for MMC v5.1)
EMMC VER: MMC 5.1
EMMC DEV Life Time: 0x01 -> Normal
EMMC MLC Life Time: 0x01 -> 0% - 10% Life Time Used
EMMC SLC Life Time: 0x01 -> 0% - 10% Life Time Used
EMMC Boot Config: 0x48/0x01/0x01
ExtCSD Automatically Saved..

Scanning Data From EMMC. Please wait..

Scanning GUID Partition Table from ROM1
GUID Partition Table is Found. Max Parts: 128
GPT: GPT [000000000000 - 000000004400] Size: 17.00 KB
GPT: EFS [000000400000 - 000001400000] Size: 20.00 MB
GPT: SEC_EFS [000001800000 - 000001400000] Size: 20.00 MB
GPT: RESERVED [000002C00000 - 000000400000] Size: 4.00 MB
GPT: CPEFS [000003000000 - 000000800000] Size: 8.00 MB
GPT: STEADY [000003800000 - 000000400000] Size: 4.00 MB
GPT: PARAM [000003C00000 - 000000800000] Size: 8.00 MB
GPT: BOTA [000004400000 - 000002400000] Size: 36.00 MB
GPT: LDFW [000006800000 - 000000800000] Size: 8.00 MB
GPT: TZSW [000007000000 - 000000180000] Size: 1.50 MB
GPT: TZAR [000007180000 - 000000680000] Size: 6.50 MB
GPT: KEYSTORAGE [000007800000 - 000000080000] Size: 512.00 KB
GPT: NAD_REFER [000007880000 - 000000100000] Size: 1.00 MB
GPT: UP_PARAM [000007980000 - 000000800000] Size: 8.00 MB
GPT: MISC [000008180000 - 000000200000] Size: 2.00 MB
GPT: UH [000008380000 - 000000200000] Size: 2.00 MB
GPT: UHCFG [000008580000 - 000000400000] Size: 4.00 MB
GPT: BLCMD [000008980000 - 000000080000] Size: 512.00 KB
GPT: BOOT [000008A00000 - 000002C00000] Size: 44.00 MB
GPT: RECOVERY [00000B600000 - 000003500000] Size: 53.00 MB
GPT: DTB [00000EB00000 - 000000800000] Size: 8.00 MB
GPT: DTBO [00000F300000 - 000000800000] Size: 8.00 MB
GPT: RADIO [00000FB00000 - 000003200000] Size: 50.00 MB
GPT: PERSISTENT [000012D00000 - 000000080000] Size: 512.00 KB
GPT: VBMETA [000012D80000 - 000000080000] Size: 512.00 KB
GPT: VBMETA_SYSTEM [000012E00000 - 000000080000] Size: 512.00 KB
GPT: KEYREFUGE [000012E80000 - 000001000000] Size: 16.00 MB
GPT: KEYDATA [000013E80000 - 000001000000] Size: 16.00 MB
GPT: METADATA [000014E80000 - 000002000000] Size: 32.00 MB
GPT: FMP_SELFTEST [000016E80000 - 000000001000] Size: 4.00 KB
GPT: RESERVED2 [000016E81000 - 00000017F000] Size: 1.50 MB
GPT: SUPER [000017000000 - 000152800000] Size: 5.29 GB
GPT: PRISM [000169800000 - 000037000000] Size: 880.00 MB
GPT: OPTICS [0001A0800000 - 000001800000] Size: 24.00 MB
GPT: CACHE [0001A2000000 - 00000C800000] Size: 200.00 MB
GPT: OMR [0001AE800000 - 000003200000] Size: 50.00 MB
GPT: CP_DEBUG [0001B1A00000 - 000000500000] Size: 5.00 MB
GPT: SPU [0001B1F00000 - 000003200000] Size: 50.00 MB
GPT: USERDATA [0001B5100000 - 000CDA000000] Size: 51.41 GB
GPT: BACKUP_GPT [000E8F7FBE00 - 000000004200] Size: 16.50 KB
Reading Table Completed
Scanning GUID Partition Table from ROM2
GPT Signature Not Found. Break..
Scanning GUID Partition Table from ROM3
GPT Signature Not Found. Break..

Partition #5 mount as [/mnt/vendor/efs] -> 20.00 MB
Partition #6 mount as [/efs] -> 20.00 MB
Partition #8 mount as [/mnt/vendor/cpefs] -> 8.00 MB
Partition #32 mount as [/metadata] -> 32.00 MB
Partition #36 mount as [/prism] -> 880.00 MB
Partition #37 mount as [/optics] -> 24.00 MB
Partition #39 mount as [/omr] -> 50.00 MB
Partition #41 mount as [/spu] -> 50.00 MB

EmptyCheck:
EMPTY -> #6 - [RESERVED]
EMPTY -> #9 - [PARAM]
EMPTY -> #10 - [BOTA]
EMPTY -> #17 - [MISC]
EMPTY -> #18 - [UH]
EMPTY -> #19 - [UHCFG]
EMPTY -> #20 - [BLCMD]
EMPTY -> #23 - [DTB]
EMPTY -> #26 - [PERSISTENT]
EMPTY -> #29 - [KEYREFUGE]
EMPTY -> #30 - [KEYDATA]
EMPTY -> #33 - [RESERVED2]
EMPTY -> #37 - [CACHE]
EMPTY -> #41 - [USERDATA]
EmptyCheck: Done
Samsung S/N = RZ8R9108ENJ

Scanner Thread Terminated
Elapsed: 00:00:14:682
Found 43 Partition(s)..
Scan Done. Init Main Engine...

Resetting EasyJtag Box. Wait..
CMD Pullup Level: 2087 mV
CMD Active Level: 2255 mV
Reader Engine Initialized.. 0/OK
Source: EasyJtag Port [EMMC/SD/MMC]
Generation: GPT [QC/SAMS/BCM/INTEL/MTK]
Bus Mode: 1BIT
Operation Done: [Init Engine], Elapsed: 00:00:01:582

Reset Google FRP v1.0

Search FRP Partition..
Partition FRP Not Found. Break..

Elapsed Time: [00:00:00:255]
Operation Done: [RESET FRP], Elapsed: 00:00:00:278
Click to expand...

Code:
eMMC_tool Suite ver. 1.6.6.0 (release date: 05.05.2021)
Microsoft Windows 7 (32 bit) build 7601 (6.1.7600.16385)

Looking for EasyJTAG box...
EasyJTAG API ver. 3403
EasyJTAG Box Serial = F6F272D292237F2E
Card Serial = AA2778BA
EasyJTAG Box Firmware = 2.5301

Changelog:

05.05.2021 (ver 1.6.6.0)
Add: New keys for Oppo unpack
Fix: Bugs that have been found through your crash report
05.05.2021 (ver 2.0.1.0)
Add: Vendor LG
Add: Mediatek Preloader Parser
Add: OnePlus Unpacker
Add: Xiaomi Custom EDL Authorization
Add: Xiaomi Remove Mi Account (only Qualcomm)

Setting interface to EasyJtag2/ISP
Setting bus width to 1 Bit
Setting frequence to 24 MHz
CMD Pullup Level: 2081 mV
CMD Active Level: 2255 mV
EMMC Device Information :
EMMC CID: 15010044503644414200E1E0D3E3789B
EMMC CSD: D02701320F5903FFF6DBFFEF8E40400D
EMMC Manufacture : SAMSUNG , EMMC NAME: DP6DAB , HEX: 445036444142 , S/N: E1E0D3E3 , rev. 0x00
EMMC Manufacture ID: 0x15 , OEM ID: 0x00 , Device Type: BGA (Discrete embedded) , Date: 7/2021
EMMC ROM 1 (Main User Data) Capacity: 59640 MB (000E8F800000)
EMMC ROM 2/3 (Boot Partition 1/2) Capacity: 4096 KB (000000400000)
EMMC RPMB (Replay Protected Memory Block) Capacity: 16384 KB (000001000000) Counter: 404 , Response: Not Clean
EMMC Permanent Write Protection: No
EMMC Temporary Write Protection: No
Extended CSD Information :
Extended CSD rev: 1.8 (MMC 5.1)
Boot configuration [PARTITION_CONFIG]: 0x48 , Boot from: ROM2 (Boot partition 1)
Boot Bus Config: 0x01 , width 4bit
H/W Reset Function [RST_N_FUNCTION]: 0x01, RST_n signal is permanently enabled
Supported partition features [PARTITIONING_SUPPORT]: 0x07
Device supports partitioning features
Device can have enhanced technological features in partitions and user data area
Device can have extended partitions attribute
Partition Settings [PARTITION_SETTING_COMPLETED]: 0x00
Backup saved: DP6DAB_E1E0D3E3_20211024_194219.extcsd
EMMC Init completed.

Operation: Reading from eMMC...

Reading from: ROM1 , start: 0x000000000000 , size: 0x000080000000
Output file: C:\Program Files\Z3X\EASYJTAGPLUS\A127F DUMP\EMMC_NONAME_ROM1_000000000000_000080000000.bin
eMMC switching to ROM1
Reading partition...
Done reading partition. Read speed: 2839.96 Kb/s

All done time: [00:12:18:809]

Setting interface to EasyJtag2/ISP
Setting bus width to 1 Bit
Setting frequence to 24 MHz
CMD Pullup Level: 2086 mV
CMD Active Level: 2255 mV
EMMC Device Information :
EMMC CID: 15010044503644414200E1E0D3E3789B
EMMC CSD: D02701320F5903FFF6DBFFEF8E40400D
EMMC Manufacture : SAMSUNG , EMMC NAME: DP6DAB , HEX: 445036444142 , S/N: E1E0D3E3 , rev. 0x00
EMMC Manufacture ID: 0x15 , OEM ID: 0x00 , Device Type: BGA (Discrete embedded) , Date: 7/2021
EMMC ROM 1 (Main User Data) Capacity: 59640 MB (000E8F800000)
EMMC ROM 2/3 (Boot Partition 1/2) Capacity: 4096 KB (000000400000)
EMMC RPMB (Replay Protected Memory Block) Capacity: 16384 KB (000001000000) Counter: 404 , Response: Not Clean
EMMC Permanent Write Protection: No
EMMC Temporary Write Protection: No
Extended CSD Information :
Extended CSD rev: 1.8 (MMC 5.1)
Boot configuration [PARTITION_CONFIG]: 0x48 , Boot from: ROM2 (Boot partition 1)
Boot Bus Config: 0x01 , width 4bit
H/W Reset Function [RST_N_FUNCTION]: 0x01, RST_n signal is permanently enabled
Supported partition features [PARTITIONING_SUPPORT]: 0x07
Device supports partitioning features
Device can have enhanced technological features in partitions and user data area
Device can have extended partitions attribute
Partition Settings [PARTITION_SETTING_COMPLETED]: 0x00
Backup saved: DP6DAB_E1E0D3E3_20211024_195619.extcsd
EMMC Init completed.

Operation: Reading from eMMC...

Reading from: ROM2 , start: 0x000000000000 , size: 0x000000400000
Output file: C:\Program Files\Z3X\EASYJTAGPLUS\A127F DUMP\EMMC_DP6DAB_ROM2_000000000000_000000400000.bin
eMMC switching to ROM2
Reading partition...
Done reading partition. Read speed: 2198.99 Kb/s

All done time: [00:00:02:104]

Setting interface to EasyJtag2/ISP
Setting bus width to 1 Bit
Setting frequence to 24 MHz
CMD Pullup Level: 2086 mV
CMD Active Level: 2257 mV
EMMC Device Information :
EMMC CID: 15010044503644414200E1E0D3E3789B
EMMC CSD: D02701320F5903FFF6DBFFEF8E40400D
EMMC Manufacture : SAMSUNG , EMMC NAME: DP6DAB , HEX: 445036444142 , S/N: E1E0D3E3 , rev. 0x00
EMMC Manufacture ID: 0x15 , OEM ID: 0x00 , Device Type: BGA (Discrete embedded) , Date: 7/2021
EMMC ROM 1 (Main User Data) Capacity: 59640 MB (000E8F800000)
EMMC ROM 2/3 (Boot Partition 1/2) Capacity: 4096 KB (000000400000)
EMMC RPMB (Replay Protected Memory Block) Capacity: 16384 KB (000001000000) Counter: 404 , Response: Not Clean
EMMC Permanent Write Protection: No
EMMC Temporary Write Protection: No
Extended CSD Information :
Extended CSD rev: 1.8 (MMC 5.1)
Boot configuration [PARTITION_CONFIG]: 0x48 , Boot from: ROM2 (Boot partition 1)
Boot Bus Config: 0x01 , width 4bit
H/W Reset Function [RST_N_FUNCTION]: 0x01, RST_n signal is permanently enabled
Supported partition features [PARTITIONING_SUPPORT]: 0x07
Device supports partitioning features
Device can have enhanced technological features in partitions and user data area
Device can have extended partitions attribute
Partition Settings [PARTITION_SETTING_COMPLETED]: 0x00
Backup saved: DP6DAB_E1E0D3E3_20211024_195639.extcsd
EMMC Init completed.

Operation: Reading from eMMC...

Reading from: ROM3 , start: 0x000000000000 , size: 0x000000400000
Output file: C:\Program Files\Z3X\EASYJTAGPLUS\A127F DUMP\EMMC_DP6DAB_ROM3_000000000000_000000400000.bin
eMMC switching to ROM3
Reading partition...
Done reading partition. Read speed: 2211.76 Kb/s

All done time: [00:00:02:156]
Click to expand...

  • Like
Reactions: Softgsm12
