Ques/Help BQ 3202B V2, main: TP.MT5510S.PB756

Droidmaster

Member
Oct 12, 2020
44
1
2
Language
English

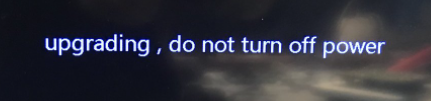

I ask for help or practical hints, TV Smart BQ 3202B V2, main: TP.MT5510S.PB756, panel: C320Y19-7N after turning on, the "BQ" logo appears and hangs on the SmartTV screensaver, according to all indications, the software has flown, find the original firmware on I couldn’t use the device, but with the alternative ones from the manufacturer ECON (TP.MT5510S.PB756) it’s impossible to fill in via USB, although the “upgrading, do not turn off the power” writes, the duty indicator blinks red and blue for more than two hours and to no avail. The firmware file to the root of the USB flash drive and renamed as (allupgrade_5510_sos)


1635873658196.png 1635873721461.png 1635873792932.png

Solution
Colleagues, in general, the issue has been resolved by replacing eMMC, firmware from the manufacturer ECON for TP.MT5510S.PB756 and setting the panel type in the seventh line of the engineering menu (LVDS) True, the screensaver is now ECON and loading Android, but this is not important, the main device is working properly.
Maybe someone will come in handy..))

GuDron

Super Moderator
Staff member
Super Moderator
Jan 28, 2020
1,741
6
82
Language
English
In addition, I attach the file and instructions.

Instructions for installing the firmware:
1. For the firmware you need a 4-16 GB flash drive with the FAT32 file system
2. From the downloaded archive you need to drop allupgrade_5510_8G_1G_ref60.pkg into the root of the flash drive, and rename: allupgrade_5510_sos.pkg
3. Turn off the cord power the TV and insert the USB flash drive into the USB port
4. Plug the TV power cord into the outlet, and if the indicator starts blinking slowly in red and blue, then the firmware is being installed
5. After flashing, the indicator will start blinking quickly in red and blue, and then the logo will appear
6. Unplug the TV power cord from the outlet and remove the USB flash drive with firmware, then turn on the TV and make settings.
Maybe someone will be interested:

Entrance to the engineering menu:
menu, 1, 1, 4, 7

Download Here



Droidmaster

Member
Oct 12, 2020
44
1
2
Language
English
Colleagues, in general, the issue has been resolved by replacing eMMC, firmware from the manufacturer ECON for TP.MT5510S.PB756 and setting the panel type in the seventh line of the engineering menu (LVDS) True, the screensaver is now ECON and loading Android, but this is not important, the main device is working properly.
Maybe someone will come in handy..))


Attachments

  • 1635874026576.png
    1.5 MB · Views: 0
  • 1635874088785.png
    306 KB · Views: 0
Solution
